Custom Adapters
Home Up Standard Adapters Tapered Adapter Collet Adapter Grinding Wheel Adapter With Drill Chuck Special Thread Adapter Tapered Male Thread Tapered Male Shank Custom Adapters








CUSTOM ADAPTERS

SPEC SHEET

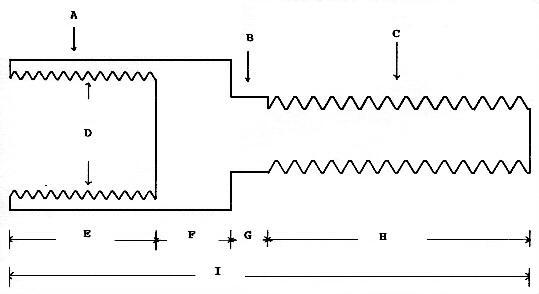

Please print out the following spec sheet, enter your specifications, and fax it back to us for a quote on your custom adapter.  The example shown is a ½”x20x2” adapter w/ 7/8”x20 female thread to fit a #8 handpiece.

ITEM DESCRIPTION

EXAMPLE

YOUR SPEC
A SIZE OF OUTSIDE HEXAGONAL STEEL  1” HEX
B DIAMETER OF MALE ARBOR 1/2”
C  SPEC OF MALE THREAD 1/2” X 20
D SPEC OF FEMALE THREAD (OR WHICH HANDPIECE TO BE USED ON) 7/8”X20
E DEPTH OF FEMALE THREAD (DETERMINED BY LENGTH OF MALE THREAD ON YOUR PART) 7/8”
F  LENGTH OF SOLID HEX (“E” + “F” GIVES TOTAL LENGTH OF HEXAGONAL STEEL) 1/4”
G LENGTH OF MALE ARBOR 1/4”
H LENGTH OF MALE THREAD (“G” + “H” GIVES OVERALL LENGTH OF MALE THREADED PART FOR ATTACHING WHEEL) 1-7/8”
I OVERALL LENGTH OF ADAPTER 3-1/4”

If you know which handpiece the adapter is to be used on we only need to have specs on the following:  ‘B’  ‘C’  ‘G’  ‘H’.  All other items are standard for each handpiece.

Please contact customer service for more info.



Information Request Form

Fill out the form above, select the items that apply, and then let us know how to contact you.

Send product literature
Send company literature
Have a salesperson contact me

Create a price quote for the specifications above

Name
Title
Company
Address
E-mail
Phone
