MULTIPLE SPEED FLEXIBLE SHAFT MACHINES

Complete with flexible shaft and handpiece, FLEXIBLE SHAFT CORPORATION’S multiple speed power units are available in seven different horsepower ratings to supply the exact power you need and the flexibility to change speed when you want.

(Click picture for better view)

The ballbearing-equipped electric motor, countershaft, and handpiece along with the solid cast iron tripod base with heavy-duty double wheel swivel casters make these machines the rugged standard of the industry.

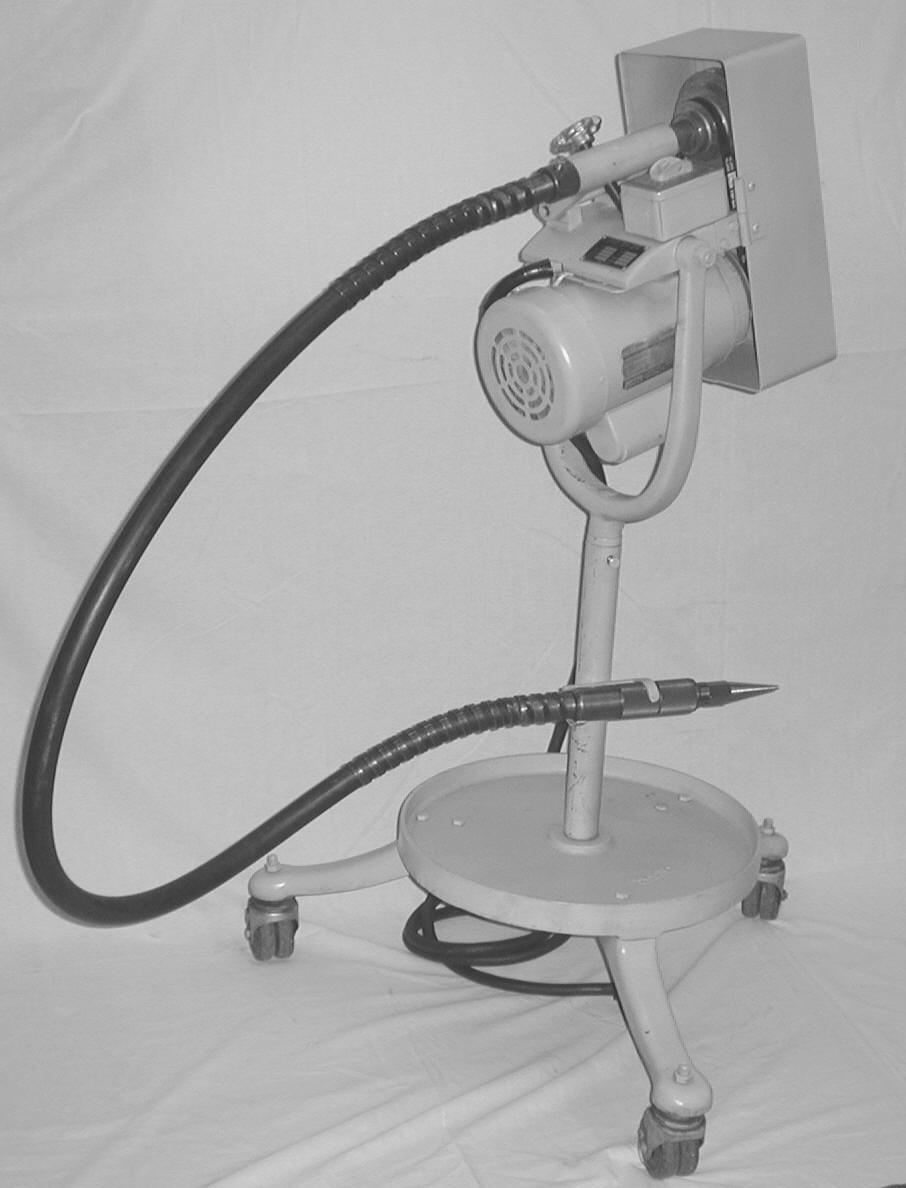

Floor Model

All multiple speed flexible shaft machines are available with a variety of speed ranges.  The standard speeds are 600rpm/1250rpm/2500rpm/5000rpm.  These give the greatest range of speeds.  We can supply machines with various pulley arrangements to give desired speed ranges.  Please contact customer service with your requirements.

 All machines are available with a choice of electric wiring schemes to fit your particular electrical requirements.  The most common is 115volt -1 phase.  This is the standard outlet setup in a home or shop.  All machines can run on this electrical service but the 1-1/2 and 2 horsepower models will draw enough electrical current to require that a dedicated line be used.  We can build any machine with 220volt- 1 phase or 220volt- 3 phase or 440volt -3 phase electrical service if your situation requires it.  There is no additional charge for this service.  Optional overload protective switches are available by special order.

 Multiple speed flexible shaft machines are available in 3 different configurations:

Floor type – The most popular model.  Constructed with a cast iron base with 3 cast iron legs with double wheel casters for in-shop use.  It rolls easily even over rough surfaces and with the flexible shaft positioned at 4 ft high it is the easiest to use for general applications.

Bench type –This model is designed for use on a workbench or tabletop.  It has a flat plate without wheels to allow it to be set on the bench surface.  It can be clamped or bolted down for even greater security.  This model takes up no floor space but offers the same function as the floor model.

Overhead type-This model is made to be suspended over the work area by either a conveyer or an overhead  hook.  It comes with a large diameter eyebolt attached to the yoke and takes up no bench  or floor space.  It is the best choice for small work areas.
