Tube Cleaners
Home Up Machines Versiflex Power Transmission Self Contained Shafts Hand Pieces Motorends Adapters Accessories Tube Cleaners Stone Restoration





Tube Cleaner Repairs

[Product Image]

(Click images for better view)

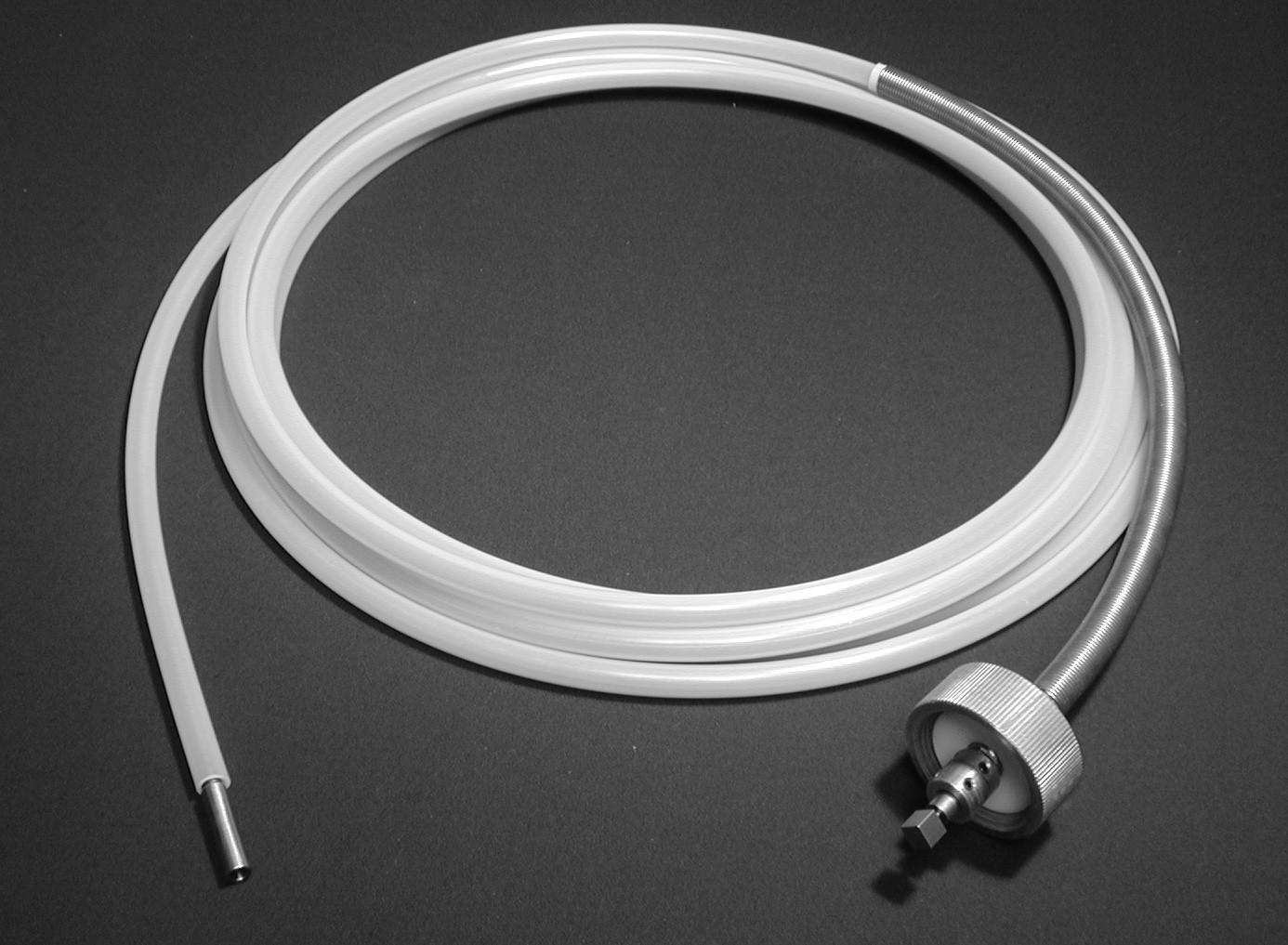

FLEXIBLE SHAFTS FOR TUBE CLEANERS

 REPLACEMENT SHAFTS FROM THE INDUSTRY EXPERTS

FEATURES

¨       SOLID BRASS SELF-ALIGNING CASING CONNECTOR – WILL NOT LEAK

¨       SOLID BRASS MANIFOLD NUT – WILL NOT BREAK LIKE PLASTIC OR GALL THREADS LIKE ALUMINUM

¨       STEEL ANTI-KINKING STRAIN RELIEF SPRING ON ALL SHAFTS PREVENTS SHARP BENDS AND EXTENDS SHAFT LIFE

¨       REPLACEABLE BREAKAWAY DRIVE COUPLING – ACTS AS A SHEAR PIN TO PROTECT FLEXIBLE SHAFT FROM OVERLOADING  (INTERCHANGEABLE SOLID DRIVE COUPLING ALSO AVAILABLE)

¨       FITS ALL POPULAR MACHINES – SEE CROSS REFERENCE CHART BELOW

¨       USES ALL POPULAR BRUSHES AND ACCESSORIES

¨       SAME DAY REPAIRS ON ALL BRANDS

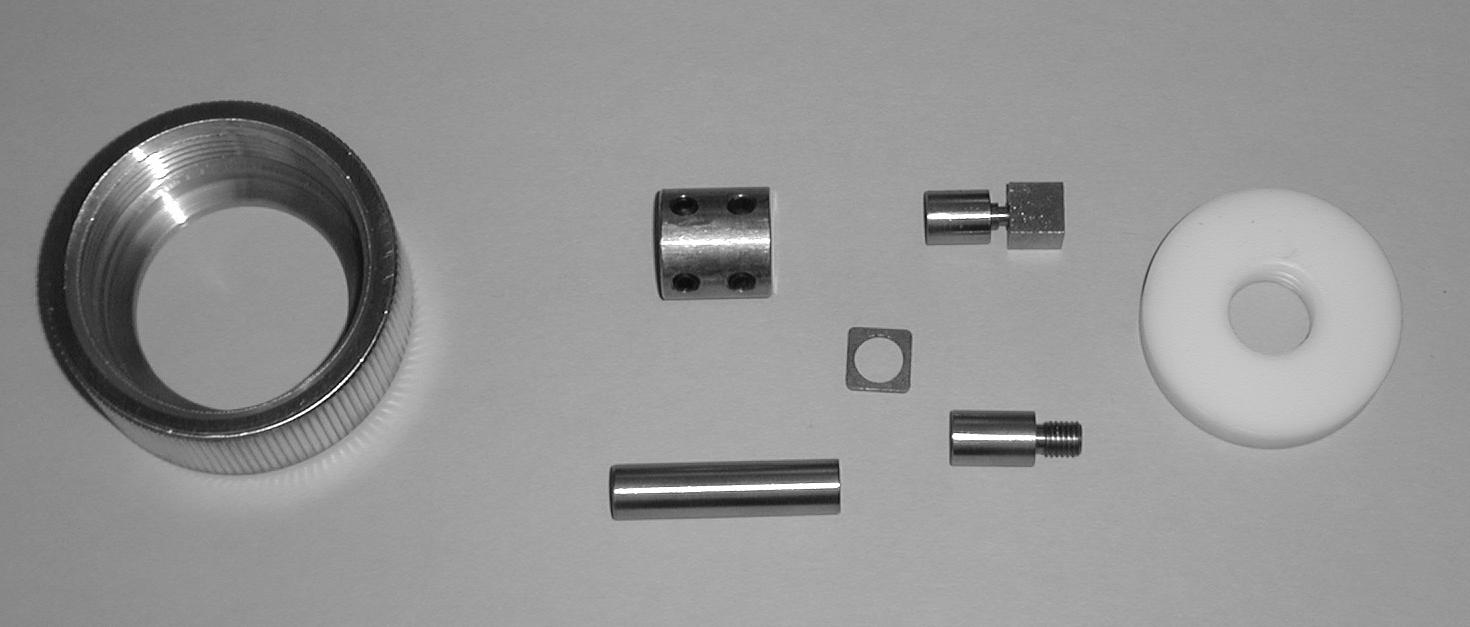

¨       REPLACEMENT PARTS FOR ALL BRANDS



FLEXIBLE SHAFT SPECIFICATIONS

PART#

CORE DIAMETER

CASING DIAMETER

TOOL F/M THREAD

FITS TUBE I.D.

FS11XX

1/8”

1/4”

6-32 or 8-32

1/4” – 3/8”

FS12XX

1/4”

3/8”

1/4”X28

7/16” – 1/2”

FS13XX

5/16”

1/2”

1/4”X28

9/16” – 1”

FS14XX

1/2”

3/4”

1/2”X12

1” – 2”

FS15XX

5/8”

1”

1/2”X12

2” +



PRICE AND CROSS REFERENCE

PART#

LENGTH

PRICE

MANUFACTURER

GOODWAY

ELLIOTT

MAXI-VAC

ROBINSON

FS1115

15 FT

$115.00

701-15

051116

1915-1/4

701-15

FS1125

25 FT

$140.00

701-25

051125

1925-1/4

701-25

FS1135

35 FT

$165.00

701-35

051133

1935-1/4

701-35

FS1145

45 FT

$190.00

701-45

051149

1945-1/4

701-45

FS1215

15 FT

$117.00

702-15

051216

1915-3/8

702-15

FS1225

25 FT

$151.00

702-25

051225

1925-3/8

702-25

FS1235

35 FT

$185.00

702-35

051233

1935-3/8

702-35

FS1245

45 FT

$219.00

702-45

051249

1945-3/8

702-45

FS1315

15 FT

$134.00

703-15

051316

1915-1/2

703-15

FS1325

25 FT

$172.00

703-25

051325

1925-1/2

703-25

FS1335

35 FT

$210.00

703-35

051333

1935-1/2

703-35

FS1345

45 FT

$248.00

703-45

051349

1945-1/2

703-45

FS1415

15 FT

$230.00

720-15

051416

1915-3/4



FS1425

25 FT

$315.00

720-25

051425

1925-3/4



FS1235

35 FT

$400.00

720-35

051433

1935-3/4



FS1245

45 FT

$485.00

720-45

051449

1945-3/4



FS1515

15 FT

$360.00



051516





FS1525

25 FT

$480.00



051525





FS1535

35 FT

$600.00



051533





FS1545

45 FT

$750.00



051549





DISTRIBUTOR INQUIRIES REQUESTED
