                                    FC SHAFTS

The  simplest flexible shaft assemblies.  Consist of a connector on each end of an inner core. Made for remote control or slow speed power transmission only due to the exposed nature of the rotating core. Has  same torque capacities as PTB or PTS type flexible shafts (use chart). Available from stock with standard female bore connectors. Custom connectors available by special order. Available in lengths up to 30ft. May be purchased in 1-inch increments. Other bore sizes available by special order.

FLEXIBLE COUPLINGS FC SHAFTS

PART#

CORE DIAMETER

MOTOR CONNECTOR BORE

A

B

FC 250

.250

3/16-1/4-5/16-3/8

FC 313

.313

1/4-5/16-3/8-7/16

FC 375

.375

5/16-3/8-7/16-1/2

FC 438

.438

3/8-7/16-1/2-9/16

FC 500

.500

7/16-1/2-9/16-5/8

FC 625

.625

7/16-1/2-9/16-5/8

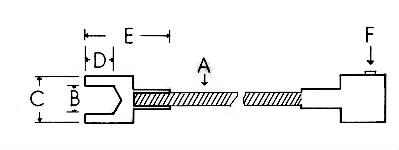

FLEXIBLE COUPLINGS FC SHAFT MOTOR CONNECTOR DIMENSIONS

MOTOR CONNECTOR BORE

MOTOR CONNECTOR DIAMETER

MOTOR CONNECTOR BORE DEPTH

MOTOR CONNECTOR LENGTH

SET SCREW SIZE

B C D E F

3/16

3/8

1/2

1-3/8

10-32

1/4

7/16

1/2

1-3/8

10-32

5/16

1/2

1/2

1-3/8

10-32

3/8

11/16

5/8

1-5/8

1/4x20

7/16

3/4

5/8

1-5/8

1/4x20

1/2

7/8

3/4

1-3/4

5/16x18

9/16

15/16

3/4

1-3/4

5/16x18

5/8

1

7/8

1-7/8

5/16x18



Pricing

Part # Core Diameter Motor Connector Bore Base Cost Per Inch 6" OAL 12" OAL 24" OAL Minimum OAL
FC 250 .250 3/16-1/4-5/16-3/8 $77.35 $0.18 $8.43 $79.51 $81.67 4"
FC 313 .313 1/4-5/16-3/8-7/16 $78.65 $0.28 $80.33 $82.01 $85.37 4"
FC 375 .375 5/16-3/8-7/16-1/2 $78.65 $0.35 $80.75 $82.85 $87.05 4 1/2"
FC 438 .438 3/8-7/16-1/2-9/16 $80.05 $0.40 $82.45 $84.85 $89.65 4 1/2"
FC 500 .500 7/16-1/2-9/16-5/8 $81.40 $0.55 $84.70 $88.00 $94.60 5"
FC 625 .625 7/16-1/2-9/16-5/8 $82.67 $1.09 $89.21 $95.75 $108.83 5"
