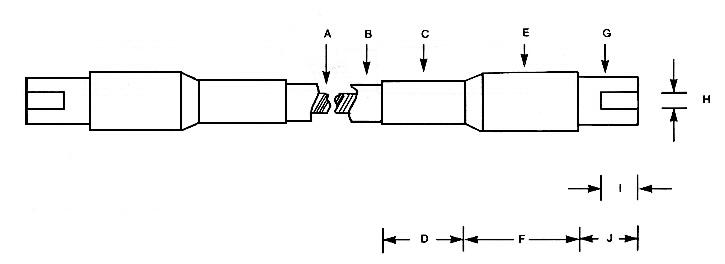

PTB SHAFTS
PART#
|
CORE DIAMETER
|
CASING DIAMETER
|
CASING COUPLING DIAMETER
|
CASING COUPLING LENGTH
|
BEARING HOUSING DIAMETER
|
BEARING HOUSING LENGTH
|
MOTOR CONNECTOR DIAMETER
|
MOTOR CONNECTOR BORE
|
MOTOR CONNECTOR BORE DEPTH
|
MOTOR CONNECTOR LENGTH
|
| |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
PTB 250 |
.250 |
.600 |
.750 |
1.750 |
1.063 |
2.500 |
1.000 |
1/4, 5/16, 3/8, 7/16 |
1.000 |
1.625 |
|
PTB 313 |
.313 |
.850 |
1.000 |
1.750 |
1.313 |
2.500 |
1.250 |
1/4, 5/16, 3/8, 1/2, 5/8 |
1.000 |
1.625 |
|
PTB 375 |
.375 |
.950 |
1.125 |
1.750 |
1.313 |
2.500 |
1.250 |
1/4, 5/16, 3/8, 1/2, 5/8 |
1.000 |
1.625 |
|
PTB 438 |
.438 |
1.090 |
1.250 |
1.750 |
1.313 |
2.500 |
1.250 |
1/4, 5/16, 3/8, 1/2, 5/8 |
1.000 |
1.625 |
|
PTB 500 |
.500 |
1.090 |
1.250 |
2.375 |
1.563 |
3.000 |
1.500 |
3/8, 1/2, 5/8, 3/4, 7/8, 1 |
1.500 |
2.375 |
PTB 625
|
.625
|
1.400
|
1.563
|
2.375
|
1.563
|
3.000
|
1.500
|
3/8, 1/2, 5/8, 3/4, 7/8, 1
|
1.500
|
2.375
|
CUSTOM
CONNECTORS: CONTACT
CUSTOMER SERVICE WITH SPECIFICATIONS
KEYWAY: AVAILABLE
ON SPECIAL ORDER
REMOTE
CONTROL: CONTACT
CUSTOMER SERVICE FOR PRICING
QUANTITY DISCOUNS: CONTACT
CUSTOMER SERVICE
TERMS: UPON
APPROVAL – NET 30 DAYS – F.O.B. BROOKLYN, NY
|
