PTS SHAFTS

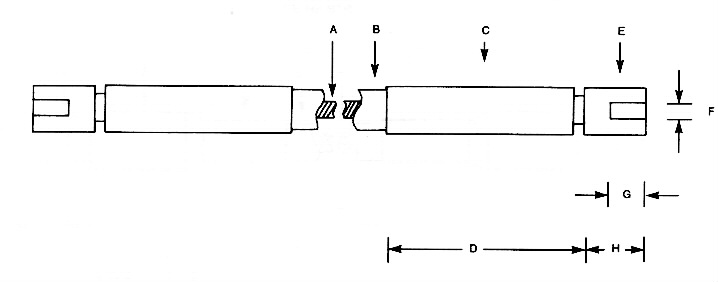

Specifications
PART#
|
CORE DIAMETER
A
|
CASING DIAMETER
B
|
HOUSING
DIAMETER
C
|
HOUSING LENGTH
D
|
MOTOR CONNECTOR
DIAMETER E
|
MOTOR CONNECTOR
BORE F
|
MOTOR CONNECTOR
BORE DEPTH
G
|
MOTOR CONNECTOR
LENGTH
H
|
|
PTS 188 |
.188 |
.520 |
.625 |
2.563 |
.625 |
3/16, 1/4, 5/16 |
.625 |
1.250 |
|
PTS 250 |
.250 |
.600 |
.688 |
2.688 |
.688 |
1/4, 5/16, 3/8 |
.625 |
1.250 |
|
PTS 313 |
.313 |
.850 |
1.000 |
2.688 |
1.000 |
1/4, 5/16, 3/8, 1/2, 5/8 |
.750 |
1.375 |
|
PTS 375 |
.375 |
.950 |
1.125 |
3.000 |
1.125 |
5/16, 3/8, 1/2, 5/8 |
.750 |
1.375 |
|
PTS 438 |
.438 |
1.090 |
1.250 |
3.250 |
1.250 |
3/8, 1/2, 5/8 ,3/4 |
1.000 |
1.625 |
|
PTS 500 |
.500
|
1.090
|
1.250
|
4.125
|
1.250
|
3/8, 1/2,
5/8, 3/4
|
1.500
|
2.375
|
|
PTS 625 |
.625
|
1.400
|
1.563
|
4.375
|
1.563
|
1/2, 5/8,
3/4, 7/8, 1
|
1.500
|
2.500
|
PRICE LIST
DETERMINE PRICE: FIND
PART#, MULTIPLY PRICE/INCH TIMES OVERALL LENGTH OF UNIT (IN INCHES), AND ADD
BASE PRICE.
BASE PRICE INCLUDES: MOTOR
CONNECTORS, BEARING HOUSINGS, AND ASSEMBLY.
-NO
SET UP CHARGES-
CUSTOM
CONNECTORS: CONTACT
CUSTOMER SERVICE WITH SPECIFICATIONS
KEYWAY: AVAILABLE
ON SPECIAL ORDER
REMOTE
CONTROL: CONTACT
CUSTOMER SERVICE FOR PRICING
QUANTITY DISCOUNS: CONTACT
CUSTOMER SERVICE
TERMS: UPON
APPROVAL – NET 30 DAYS – F.O.B. BROOKLYN, NY
|
SLEEVE BEARING ENDS |
|
PART# |
BASE
PRICE |
PRICE/INCH |
24”LONG |
48”LONG |
72”LONG |
MIN.
LENGTH |
|
PTS188 |
$
85.25 |
$0.80 |
$104.45 |
$123.65 |
$142.85 |
9-1/2 INCHES |
|
PTS250 |
122.35 |
0.85 |
142.75 |
163.15 |
183.55 |
10 INCHES |
|
PTS313 |
127.90 |
1.15 |
155.50 |
183.10 |
210.70 |
10 INCHES |
|
PTS375 |
158.00 |
1.30 |
189.20 |
220.40 |
251.60 |
11 INCHES |
|
PTS438 |
174.40 |
1.45 |
209.20 |
244.00 |
278.80 |
12 INCHES |
|
PTS500 |
179.70 |
1.60 |
218.10 |
256.50 |
294.90 |
16 INCHES |
|
PTS625 |
182.35 |
2.55 |
243.55 |
304.75 |
365.95 |
17 INCHES |
|
